Screw Conveyors | SV Conveyors

SVCE makes horizontal / inclined as well as vertical screw conveyors based on IS standards / Cema. SVCE also offers Water Cooled screw conveyors for material with very high temperature for reduction / limiting of temperature while getting conveyed to next equipment acceptable degree of temperature. Screw Conveyors can handle materials such as wood chips, aggregates, food waste, boiler ash, animal feed, cereal grains, municipal solid waste etc.

Available Configurations:

▪ U Trough Screw Feeders
▪ Tubular Screw Feeders
▪ Multiple Flighted-Screw Feeders
▪ Paddle Screw Conveyors / Mixers

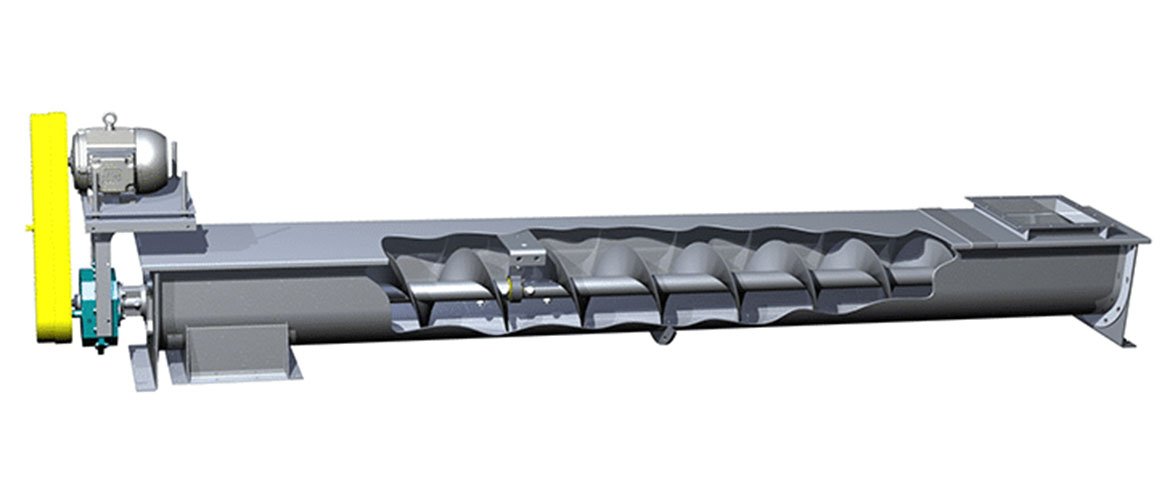

U Trough Screw Feeders:

▪ Screw Conveyors are bulk material transporting devices capable of handling a great variety of materials which have good flow ability and needs very little space.
▪ Screw flights are hard-surfaced for prolonged life of conveyor while handling abrasive materials.
▪ Screw conveyor can handle two feeding points and single discharge at middle as / if required by arranging flights in opposite directions.
▪ Standard Screw diameters are from 100 mm upto 1250 mm OR as per customer’s requirement / feasibility of size in running plants.

Tubular screw conveyor:

▪ Mostly used in food and feed industries for accurate blending and mixing for making high-quality products.
▪ Ideal solution for accurate feeding.
▪ Feeding ingredients to weigh hoppers or mixers.
▪ Conveying materials in applications which must meet elevated sanitation requirements.

Multiple Flighted-Screw Feeders:

▪ These Conveyors are used for extremely sensitive / hygroscopic materials that tend to bridge & settle easily and those (material) can only be stored in bins with vertical or near vertical walls.
▪ The use of several screws makes it possible, minimizing the risk of bridging & settling and discharging the above nature (difficult) materials in a controlled manner.
▪ Any number of screws can be incorporated to suit specific requirements such as wide inlet openings to accommodate large hoppers or storage bins.

Paddle Screw Conveyors / Mixers:

▪ This is similar to screw conveyors having agitators instead of screw flights.
▪ The core advantage of these conveyors is it handles material as well as mix product while handling / moving it.
